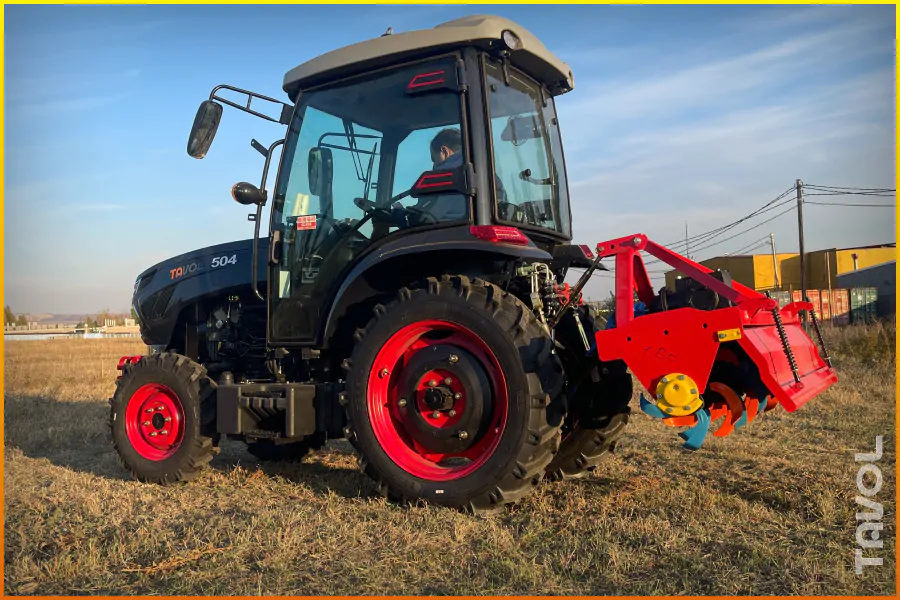

Tavol TL504

In stock
The Tavol TL504 tractor is a high-tech solution for your agriculture that combines comfort, productivity, but at the same time mobility and maneuverability during work. With a powerful 50-horsepower engine, all-wheel drive and 8+8 gears, the TL504 is ready to take on a variety of tasks.
This tractor comes with or without a cab. Thanks to its compact dimensions, the TL504 is easy to maneuver even in narrow rows and aisles.
The tractor is equipped with a two-stage clutch, hydraulic steering and two groups of hydraulic outputs. This provides the operator with ease of operation and efficient operation.
The TL504 is an excellent solution for your agriculture that will help you increase your efficiency and achieve new successes.

Price on request

  • Engine information

    Engine type
    diesel
    Power kW
    36,8
    Power, hp
    50
    Rotation speed, rpm
    2400
    Cylinders
    4
    Class
    Euro II
    Fuel tank capacity, l
    60

    Transmission

    Clutch
    single stage
    Transmission
    8+2
    PTO speed, rpm
    540/760

    Hydraulic suspension system

    Hydraulic system type
    Semi-separated
    Number of hydraulic output groups
    2
    Load capacity of the hydraulic system, kg
    1000
    Maximum pressure, MPa
    20

    Sizes

    Length / width / height, mm
    3300/1440/2450
    Width (at the ends of the rear wheel axle shafts), mm
    1300
    Operating weight, kg
    1950
    Tires: front wheels
    7,5-16
    Tires: rear wheels
    11,2-28
